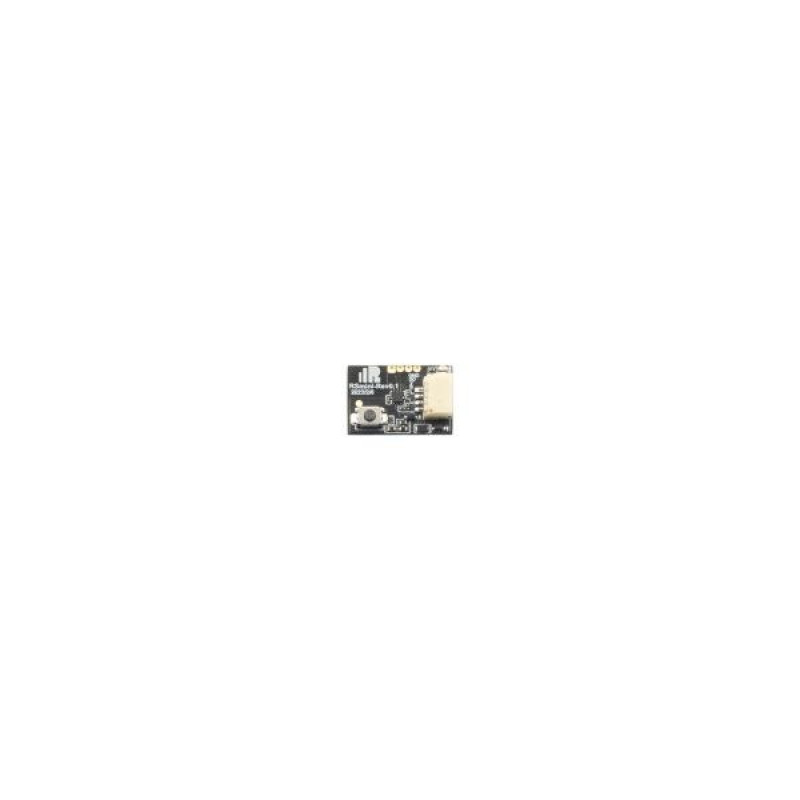

FrSky ACCESS Archer Plus RS Mini Receiver

FrSky ACCESS Archer Plus RS Mini Receiver is an original FrSky product from the ACCESS / Archer receiver system family. This page is organized for practical buying decisions, with the fit, RF protocol, channel count, voltage, compatible accessories and installation role presented clearly.

It is suited for radio receiver installations for RC aircraft, helicopters, gliders and advanced telemetry setups. The information focuses on what an end customer needs to choose confidently, without exposing supplier pricing or directing the customer away from RC-MODEL.

Key Advantages

• The Archer line of receivers has been enhanced further with the addition of the new Archer Plus Series.
• The Archer Plus Series receivers include some new features. Firstly an enhanced anti-RF-Interference capability can offer a more solid RF performance, and this is in addition to existing anti-interfere performance in the spark ignition process. These Plus series receivers are also with both ACCESS and ACCST D16 modes, where the RF protocol is smartly matched during the binding process on the radio. In ACCESS mode, these receivers not only feature OTA wireless firmware upgrades, increased range, and telemetry performance, they support even more functions like configurable telemetry power (RS), S.Port / F.Port / FBUS switching, and VFR indicators.
• The RS Mini version provides the optimal model-building solution that uses an onboard PCB-type antenna to reduce the building hassle of using the traditional ones and removes the soldering problems by adding a wire connector to lead the external device more easily.
• Tiny and super lightweight
• S.Port / F.Port / FBUS (Configurable via S.Port)
• Over-The-Air (OTA) FW update

Core Specifications

• Product Code: FRSKY-ACCESS-ARCHER-PLUS-RS-MINI-RECEIVER
• Product Family: ACCESS / Archer receiver system
• Protocol / RF: ACCESS, Twin TW dual 2.4GHz, FBUS, S.Port, SBUS
• Channels: 16 channels, 24 channels
• Voltage: 10V, 5V
• Compatibility: All FrSky ACCESS/ACCST D16 transmitters.
• Weight: 1.3g
• Dimension: 16*11mm (L*W)
• Operating Voltage: 3.5-10V
• Operating Current: 12mA@5V
• Control Range: ≥600m (*The control range may vary based on local conditions.)
• Manufacturer: FrSky
