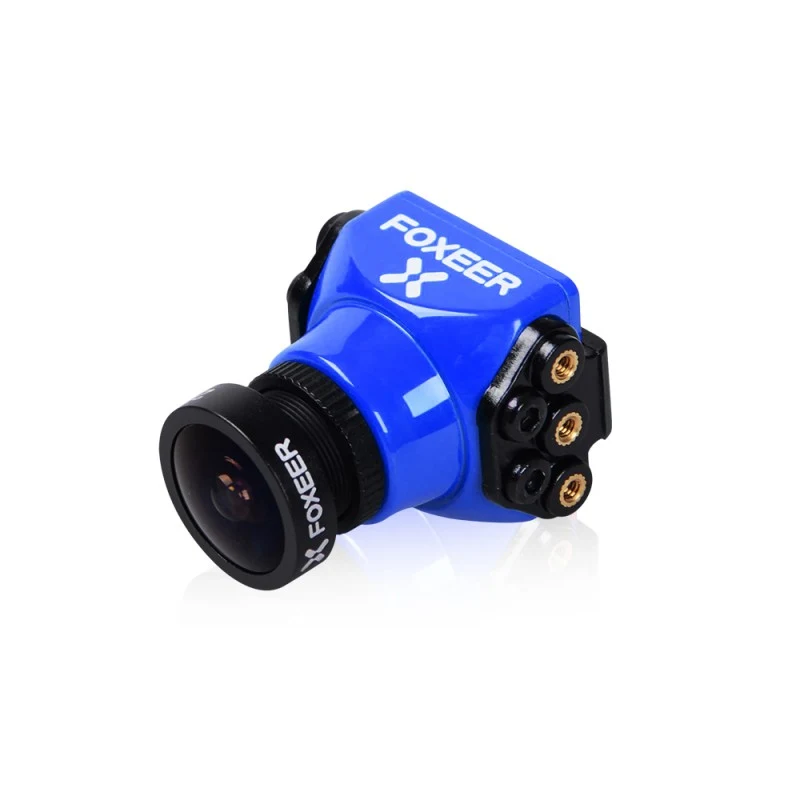

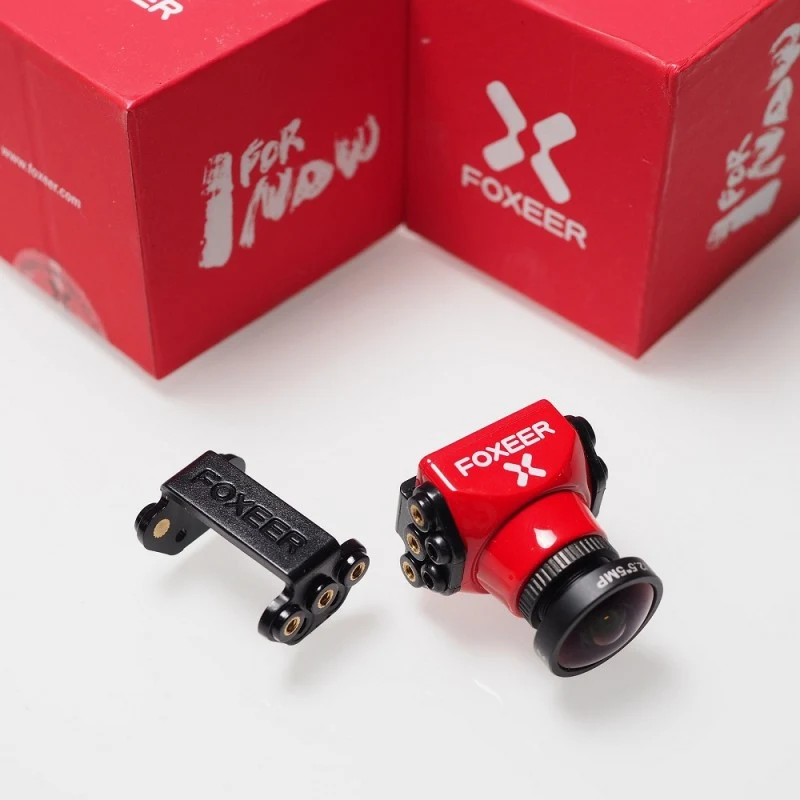

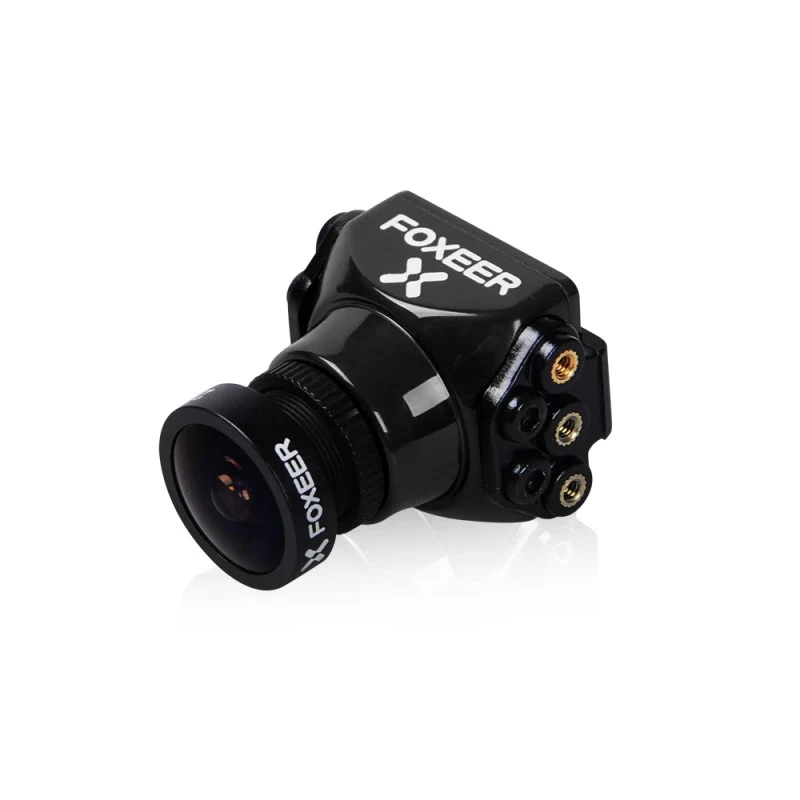

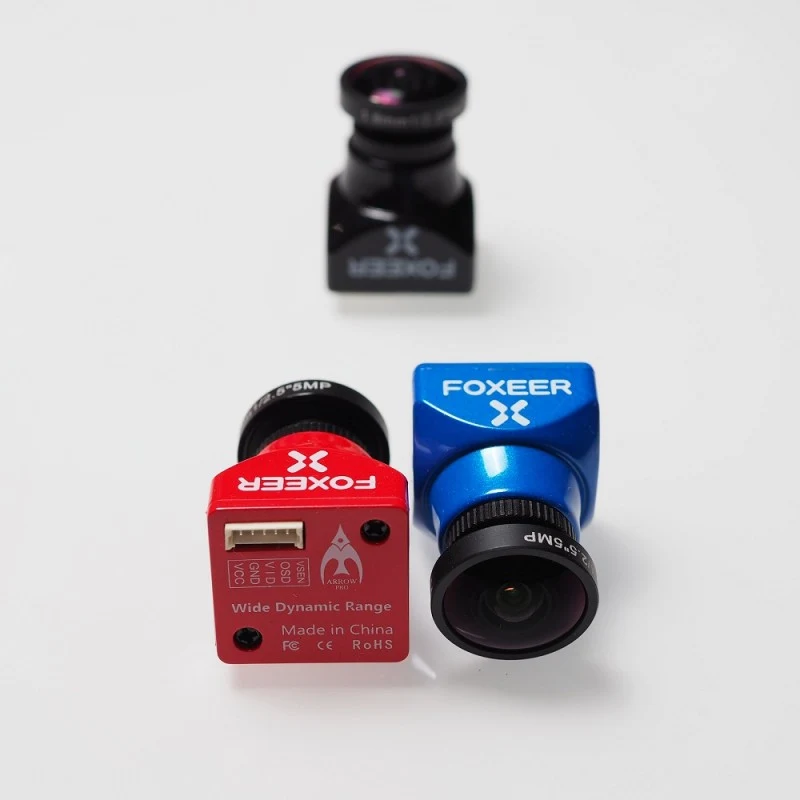

Foxeer Arrow Mini Pro FPV Camera Built-in OSD Plastic Case
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.
Foxeer Arrow Mini Pro FPV Camera Built-in OSD Plastic Case: a recreational RC product. Model details and specifications are listed below.
Specifications
| Brand | Foxeer |
|---|---|
| Model | Foxeer Arrow Mini Pro FPV Camera Built-in OSD Plastic Case |
| Manufacturer SKU | HS1207 |
| Resolution | 600YVL(Color) 650TVL(B&W) |
| Video Output | CVBS Analog Signal |
| FOV | 1.8mm FOV: 185° 2.5mm FOV: 140° |
| Input Voltage | 5V~40V |
| Power Consumption | 75mA/12V 166mA/5V |
| Storage Temperature | -20°~70°C |
| Dimension | 22*22mm 28*22(Adding extension bracket) |
| Weight | 8.7g(Exclude cable) |
Product inquiry
Availability, price and package contents are confirmed on inquiry. Specify the required model and version so radio, battery and equipment compatibility can be checked.
