EcoPower WP255T Waterproof High Torque Metal Gear Brushless Servo (HV) (Metal Case)
Prices are intentionally not displayed on the site.
Contact RC-MODEL for current availability, technical fit, compatible accessories and a formal quote.

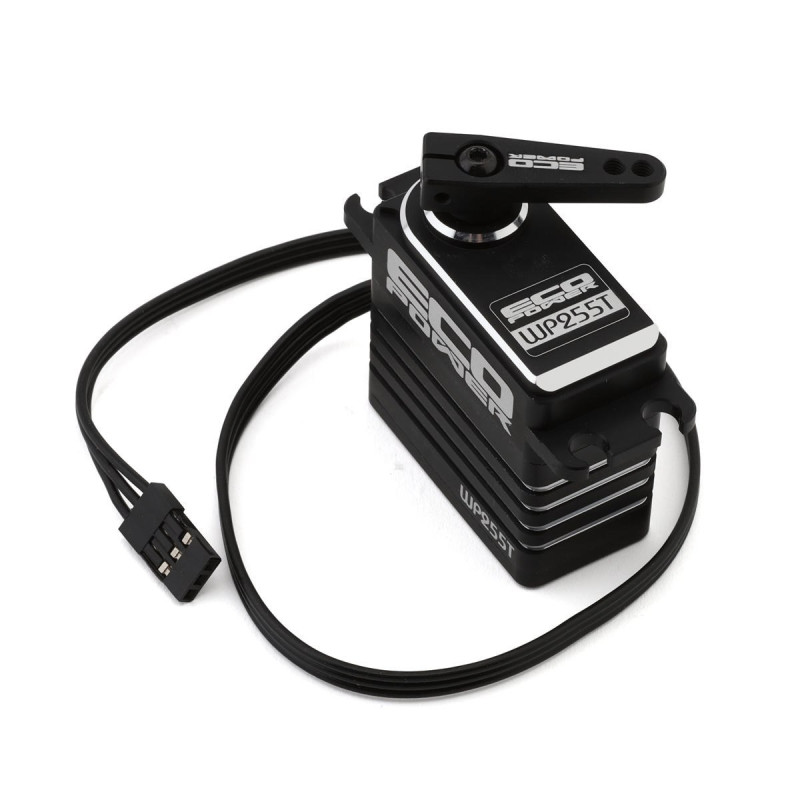

EcoPower WP255T Waterproof High Torque Metal Gear Brushless Servo (HV) (Metal Case) is a EcoPower product intended for steering, throttle, crawler, aircraft or general RC control installations. This page presents the practical buying information a customer needs: fit, SKU, image, category and technical specifications.
The content is written for purchasing through RC-MODEL, without supplier prices or links to competing stores.
Key Advantages
- Organized under the EcoPower servo range.
- Intended for steering, throttle, crawler, aircraft or general RC control installations.
- Includes local product imagery and structured specifications for easier comparison.
- Waterproof construction is highlighted where the model name specifies it.
- Brushless performance is noted for setups that need stronger response and efficiency.
- Metal construction or metal gears are identified where relevant to durability.
- 681 ounce-inches of torque at 7.4V for heavy-duty steering
Core Specifications
- Manufacturer: EcoPower
- Brand: EcoPower
- Product Code: ECP-255T
- Product Family: EcoPower servo range
- Application: 1/10, 1/8 & 1/7 Surface; steering, throttle, crawler, aircraft or general RC control installations
- Dimensions: 1.56x0.79x1.55in (39.5x20x39.25mm)
- Weight: 2.7oz (76.6g)
- AMain Product ID: 1657199
- Operating Voltage: 4.8-8.4V
- Operating Temperature: 14° to 140° F (-10 to +60° C)
- Operating Speed @ 6.0V: 0.14/60° sec
- Operating Speed @ 7.4V: 0.12/60° sec
- Operating Speed @ 8.4V: 0.10/60° sec
- Dynamic Torque @ 6.0V: 574oz-in (41.3 kg-cm)
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
Servo selection: torque, speed, gears and voltage
How to select servos for trainers, sport aircraft, large models, cars and boats without under-sizing a control surface.
How to balance an RC aircraft and find the correct CG
One of the most important setup guides: find the CG, install the flight battery, balance the aircraft and avoid nose-heavy or tail-heavy surprises.
Mandatory pre-flight checks for safer RC flying
A repeatable inspection routine for control direction, radio range, failsafe, battery, fasteners, propeller, CG and field readiness.
How to perform the first test flight of an RC aircraft
Ground checks, takeoff planning, trim passes, battery timing and first landing strategy for a new or repaired RC aircraft.
| Technical Specifications | |
| Manufacturer | EcoPower |
| Brand | EcoPower |
| Product Code | ECP-255T |
| AMain Product ID | 1657199 |
| Product Family | EcoPower servo range |
| Application | 1/10, 1/8 & 1/7 Surface; steering, throttle, crawler, aircraft or general RC control installations |
| Dimensions | 1.56x0.79x1.55in (39.5x20x39.25mm) |
| Weight | 2.7oz (76.6g) |
| Motor Type | Brushless Digital |
| Output Shaft | 25T |
| Waterproof | Yes |
| Operating Voltage | 4.8-8.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V | 0.14/60° sec |
| Operating Speed @ 7.4V | 0.12/60° sec |
| Dynamic Torque @ 6.0V | 574oz-in (41.3 kg-cm) |
| Dynamic Torque @ 7.4V | 681oz-in (49 kg-cm) |
| Gears | Metal w/ Lifetime Gear Warranty |
| Pulse/Frequency | 1520s / 333hz |
| Operating Speed @ 8.4V | 0.10/60° sec |
| Dynamic Torque @ 8.4V | 758oz-in (54.5 kg-cm) |
