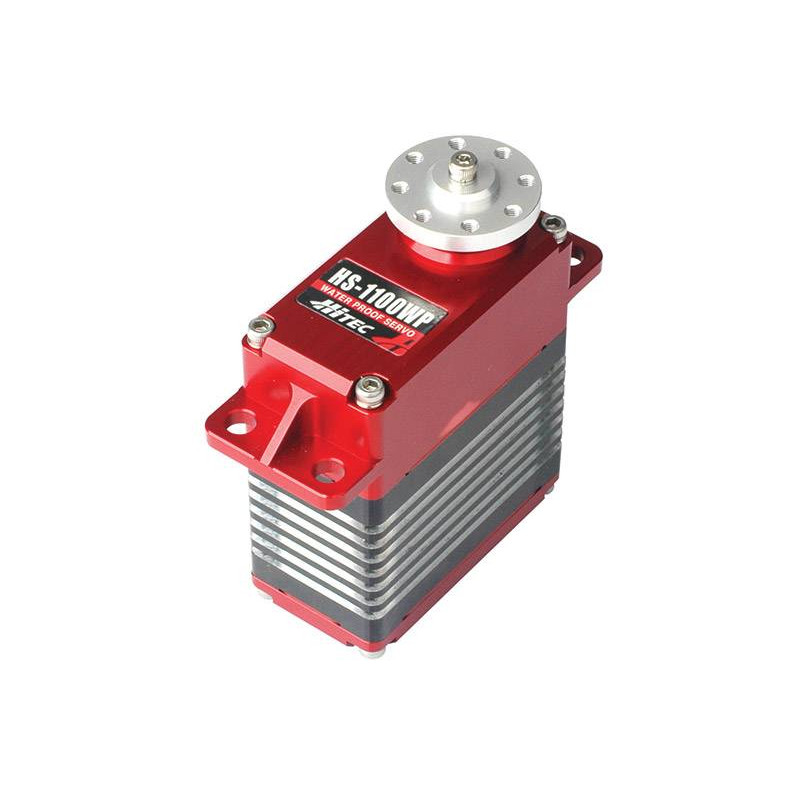

HS-1100WP Ultra-Heavy Duty, Giant, Waterproof Servo - Heavy Duty Waterproof Giant Servo

HS-1100WP Ultra-Heavy Duty, Giant, Waterproof Servo - Heavy Duty Waterproof Giant Servo


  • מותג:Hitec
  • קוד מוצר:34110
  • זמינות:במלאי

  • 0.00₪

  • לפני מס: 0.00₪

Features

  • Non-programmable, Industrial Digital Circuitry
  • EMI-shielded Cases
  • *International Protection Code 67 Rating
    (6=Dust Tight; Complete Protection Against Contact 7) – Immersion up to 1 meter
  • Durable Steel Gears
  • 14.8V 2-Cell LiPo Capability
  • 5-Pole Carbon Brushed Motor


HS-1100WP Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 11.1V ~ 14.8V
Speed (Second @ 60°) 0.26 ~ 0.19
Maximum Torque Range oz. / in. 1167 ~ 1528
Maximum Torque Range kg. / cm. 84 ~ 110
Current Draw at Idle 130 mA
No Load Operating Current Draw 1,300 mA
Stall Current Draw 6,500 mA
Dead Band Width 2 µs
Physical Specifications
Dimensions (Inches) 2.52 x 1.30 x 2.87
Dimensions (Metric) 64.0 x 33.0 x 73.0
Weight (Ounces) 12.80
Weight (Gram) 363.0
Circuit Type DIgital Amplifier with Mosfet Drive
Motor Type 5 Poles Cored Metal Brushless
Gear Material Steel
Bearing Type Quad Ball Bearing
Output Shaft (type / Ømm) Mega 15
Case Material CNC Aluminum
Dust / Water Resistance IP 67
Connector Gauge (AWG) / Strand Count 20 / 80
Radio Control Applications
Parkflyer N / A
Sport Plane >40%
Sailplane N / A
3D Performance N / A
Scale >40%
Electric Helicopter N / A
Gas Helicopter N / A
On Road 1/4th & 1/5th
Monster Truck 1/4th & 1/5th
Buggies 1/4th & 1/5th
Truggies 1/4th & 1/5th
Short Course / Truck 1/4th & 1/5th
Crawlers N / A
Sail Boat N / A
Power Boat N / A
