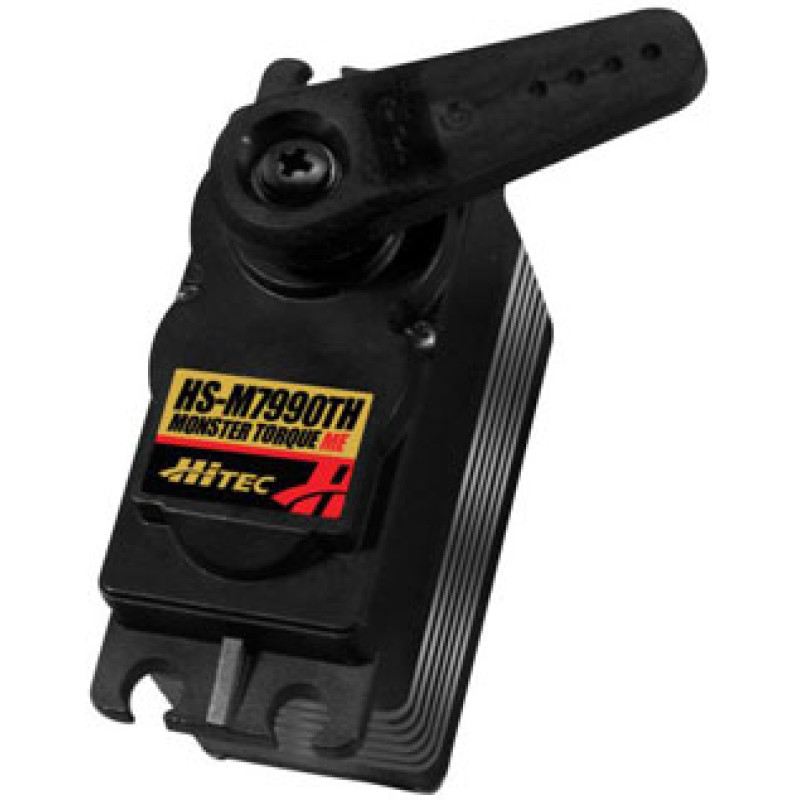

HS-M7990TH - HV Mega Torque Servo with Magnetic Encoder - High Voltage Mega Torque Servo

HS-M7990TH - HV Mega Torque Servo with Magnetic Encoder - High Voltage Mega Torque Servo


  • מותג:Hitec
  • קוד מוצר:37990S
  • זמינות:במלאי

  • 0.00₪

  • לפני מס: 0.00₪

Specifications

Modulation: Digital
Torque: 6.0V: 500.00 oz-in (36.00 kg-cm)
7.4V: 611.00 oz-in (44.00 kg-cm)
Speed: 6.0V: 0.21 sec/60°
7.4V: 0.17 sec/60°
Weight: 2.78 oz (78.8 g)
Dimensions: Length:1.72 in (43.7 mm)
Width:0.88 in (22.4 mm)
Height:1.57 in (39.9 mm)
Motor Type: Coreless
Gear Type: Titanium
Rotation/Support: Dual Bearings
Rotational Range: 90°
Pulse Cycle:
Pulse Width: 1050-1950 µs
