Introducing

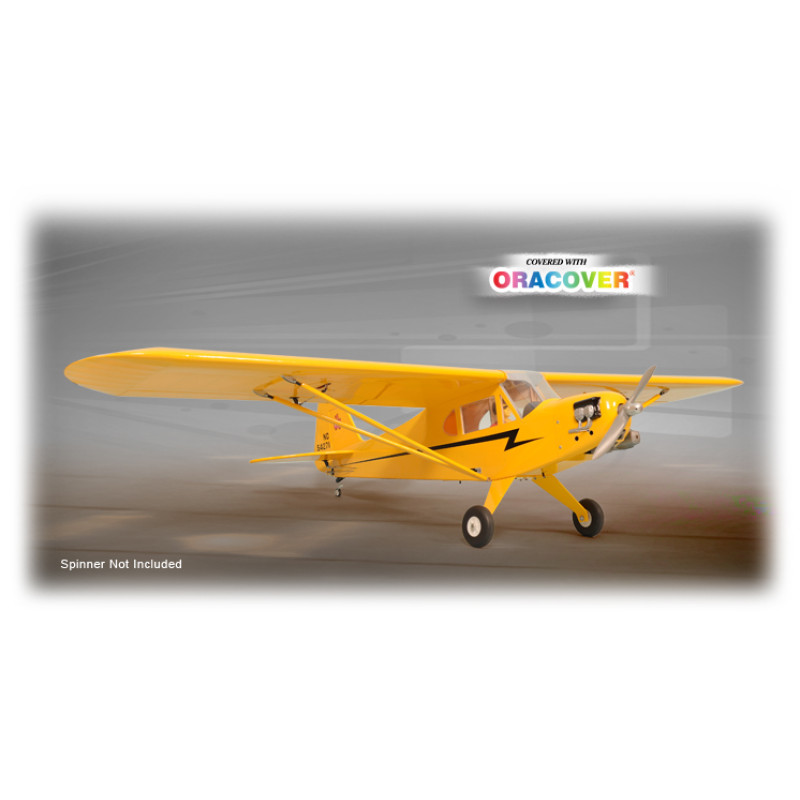

Piper J-3 Cub GP/EP SIZE .46-.55 SCALE 1:5 ARF

Technical data
- Wingspan: 2150mm (84.6in)
- Length: 1375mm (54.1 in)
- Flying weight: 3600-4000 gr
- Wing area: 69.6 dm2
- Wing loading: 57g/dm2
- Wing type: Y-clark airfoils
- Covering type: Genuine ORACOVER®
- Radio: 4 channel minimum (not included)
- Servo: 5 standard servo: 2 aileron; 1 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: .46-.55 / 2-stroke or .52/4-stroke glow engine (not included)
- Motor: brushless outrunner 1000-1400 W, 480 KV (not included)
- Experience level: Intermediate
- Plane type: Scale Civilian
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE .46-.55 (not included)
- Lipo cell: 5-6 cells / 4000 – 5500mAh (not included)
- Esc: 50-80A (not included)

Feature
- Designed for compatibility with both GP and EP flight
- Covered in genuine ORACOVER®
- Scale outline is enhanced by the lightweight fiberglass cowl
- Bolt-on two-piece wing for easy transport and setup at the field
- Strong Light Weight Construction
- High-quality hardware package included

Colour chart
- Cub Yellow (# 21030)

Packing
BOX DIMENSION
- 1159mm X 365mm X 248mm (L x W x H)
