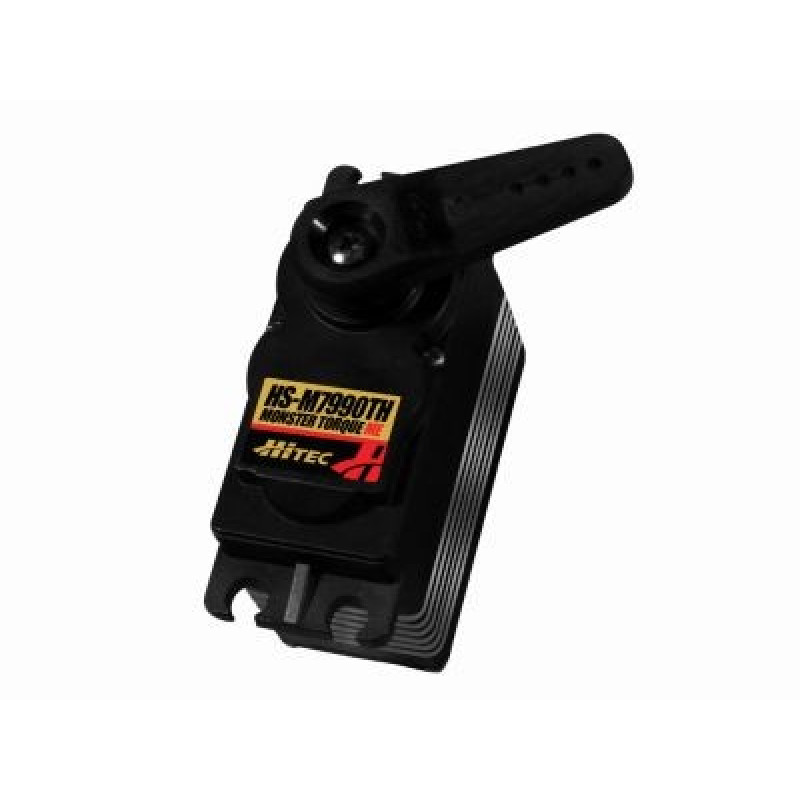

HS-M7990TH Mega Torque HV Magnetic Encoder Servo - Mega Torque Encoder Servo

Hitec's most technologically advanced servo, the "Monster Torque" HS-M7990TH features an ultra precise high resolution magnetic encoder instead of a conventional mechanical potentiometer. Designed to operate on a two cell LiPo Pack the HS-M7990TH features our newest high resolution "G2.5" 12 bit generation programmable digital circuit and our indestructible Titanium gears. Other features of the HS-M7990TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by brass axialbushings.

Features

• High Resolution Magnetic Digital Ecoder
• G2.5 12 bit Digital Brogrammable Circuit
• Titanium Gear Train (MK first gear)
• Ultra Performance Coreless Motor
• Integrated Heatsink Case
• (8) O-Rings for Water/Dust/Fuel protection
• Dual Ball Bearing Supported Output Shaft
• 10% larger than a HS-7955TG

Programmable Features Include:

  - Dead Band Width
  - Direction of Rotation
  - Speed of Rotation (slower)
  - End Points
  - Neutral Points
  - Fail Safe On/Off
  - Fail Safe Point
  - Resolution* (default is high resolution)
  - Overload Protection* (default is off)

*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.

Specifications
