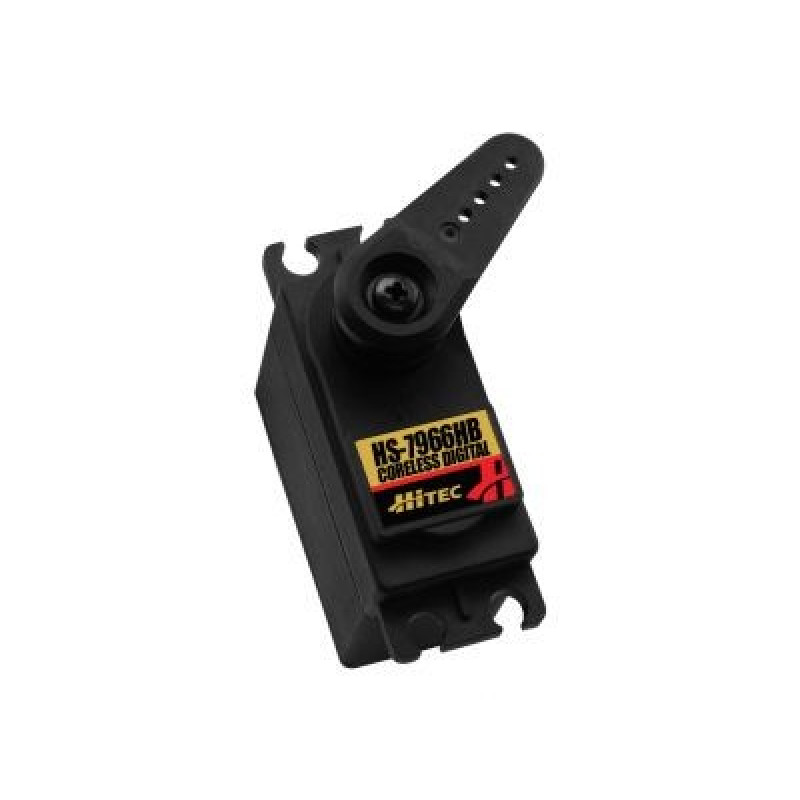

HS-7966HB High Speed Karbonite Coreless Servo - High Speed Karbonite Servo
- מותג:Hitec
- קוד מוצר:37966S
- זמינות:במלאי
-
212.00₪
- לפני מס: 181.20₪
The HS-7966HB is Hitec's fastest standard size servo. Providing a blinding fast .08 transit speed, instant torque and fantastic holding power, the HS-7966HB has our new G2 second generation programmable digital circuit. This circuit has twice the resolution of our original circuit while adding programmable overload protection.
Features
- G2 Digital Circuit
- Coreless Motor
- Dual Ball Bearing Supported Output Shaft
- Karbonite Composite Gears
Programmable Features Include:
- Dead Band Width
- Direction of Rotation
- Speed of Rotation (slower)
- End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point
- Resolution* (default is high resolution)
- Overload Protection* (default is off)
*These features are only programmable with the HFP-20 field programmer.
Specifications
| Motor Type: | Coreless |
| Bearing Type: | Dual Ball Bearing |
| Speed (4.8V/6.0V): | 0.10 / 0.08 |
| Torque oz./in. (4.8V/6.0V): | 92 / 111 |
| Torque kg./cm. (4.8V/6.0V): | 6.6 / 8.0 |
| Size in Inches: | 1.57 x 0.78 x 1.45 |
| Size in Millimeters: | 39.88 x 19.81 x 36.83 |
| Weight ounces: | 1.87 |
| Weight grams: | 53.01 |
