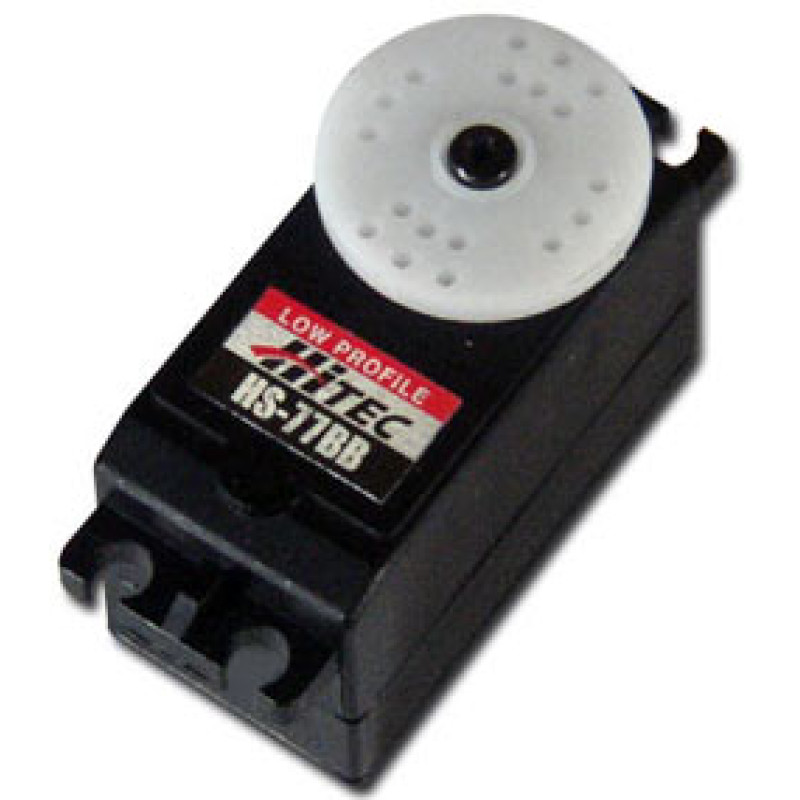

HS-77BB - Low Profile Servo - Compact Low Profile Servo
- מותג:Hitec
- קוד מוצר:31077S
- זמינות:במלאי
-
0.00₪
- לפני מס: 0.00₪
Specifications
| Modulation: | Analog |
| Torque: | 4.8V: 61.00 oz-in (4.39 kg-cm) 6.0V: 76.00 oz-in (5.47 kg-cm) |
| Speed: | 4.8V: 0.18 sec/60° 6.0V: 0.14 sec/60° |
| Weight: | 1.23 oz (34.9 g) |
| Dimensions: | Length:1.73 in (43.9 mm) Width:0.90 in (22.9 mm) Height:0.98 in (24.9 mm) |
| Motor Type: | 3-pole |
| Gear Type: | Plastic |
| Rotation/Support: | Single Bearing |
| Pulse Cycle: | 20 ms |
| Pulse Width: | 900-2100 µs |
