Why choose SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V through RC-MODEL?
SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V is an RC product from Savox. This page focuses on what an end customer needs: fit, use cases, specifications and imagery, without prices or outbound supplier detours.
Fit and use
SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V fits customers looking for Savox items in Standard Servos, with RC-MODEL support for choosing the right configuration.
- Relevant category: Standard Servos
- Product identification for inquiry: model SAVSC1258TGP / SKU SAVSC1258TGP
Key details
- Product Type: Servos
- Weight: 64g
- Motor Type: Coreless
Before ordering
- Confirm dimensions, power system, radio compatibility or material size before purchase.
- Ask us to match required accessories, adhesives, hardware, batteries or replacement parts.
- RC-MODEL helps with fit checks, availability, compatible accessories and a formal quote in Israel.

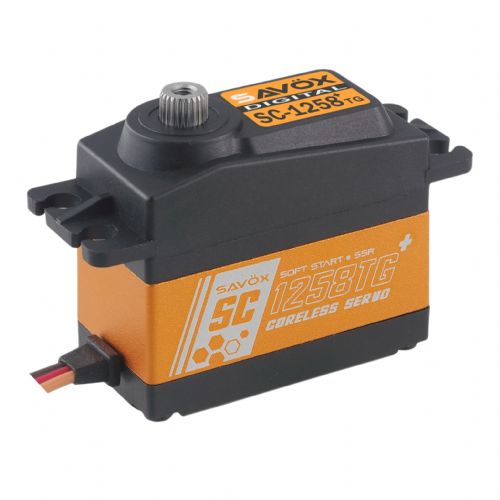

SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V
SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V is presented as an information-rich standard RC servo from Savox for RC-MODEL customers who want clear product data, official imagery, and practical comparison details without storefront pricing.
Key Specifications
- Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
- Weight: 64g
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 100mA @4.8V, 120mA @6.0V
- Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 250 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
Recommended Use
This catalog page is written for pilots, builders, racers, and RC hobby users comparing standard servos products. It highlights the manufacturer, model identity, application, and measurable details that matter when choosing compatible RC equipment.
Product-specific guides
Buying and setup guides for SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V
Use these notes to choose compatible accessories, plan assembly, order sensible spares and ask the right questions before buying SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V.
Compatibility guide
Compatibility and accessories
Before ordering SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V, match it to your setup, the Savox brand context and the exact product code SAVSC1258TGP. These are the first points we would confirm with you.
- Specification to verify: Product Type - Servos
- Specification to verify: Weight - 64g
- Torque, speed, case size and weight
- Voltage range, digital or analog control and connector type
- Spline count, arm length and receiver compatibility
Find matching products
Assembly guide
Correct setup and adjustment
For SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V, installation quality matters as much as the product itself. Use the Savox / SAVSC1258TGP identification to plan tools, setup order and final checks.
- Center the servo before installing the arm
- Set linkage geometry mechanically before radio trim
- Check endpoint travel so the servo never binds
Find matching products
Spare parts guide
Spare parts to prepare
For SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V, useful spares are the parts most likely to stop a flying, sailing or workshop day. Keep the exact code Savox ready so RC-MODEL can match compatible items from SAVSC1258TGP where available.
- Servo arms, screws, grommets and extensions
- Replacement gears when available
- Control horns and pushrods matched to the surface load
Find matching products
Upgrade guide
Useful upgrade options
Upgrade SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V only where it improves reliability, control, cooling, power margin or serviceability. We compare the current Savox setup with the target use of SAVSC1258TGP before recommending parts.
- Higher torque for larger surfaces
- Metal gears for shock load and landing gear use
- High-voltage servos only with compatible receiver power
Find matching products
Questions and answers
Questions before buying
Before choosing SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V, send RC-MODEL the model code Savox, your existing equipment and the way you plan to use it. That lets us answer with a practical fit recommendation instead of a generic answer.
- How much torque is required?
- Will the servo run on 4.8V, 6V or HV power?
- Does the spline match the arms already installed?
Ask RC-MODEL
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
Servos
How to select servos for trainers, sport aircraft, large models, cars and boats without under-sizing a control surface.
Buying guides
A buying table for matching servo size, torque, speed, gear type and voltage to trainers, gliders, 3D aircraft, EDF jets and Giant Scale models.
Building
Mechanical setup guide for servo arms, linkage angles, throw, control horns, neutral position and radio setup after geometry is correct.
Radio setup
Make an aircraft calmer for beginners by setting low rates, high rates and expo without hiding mechanical setup problems.
Safety setup
Failsafe setup for electric and fuel aircraft: throttle behavior, receiver signal loss, switch positions and safe verification before flight.
Product questions
Is SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V suitable for my RC setup?
SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V fits customers looking for a Savox product in Standard Servos. Before ordering, send us your model type, dimensions, radio or power setup so we can confirm the correct fit.
What should I include when asking about SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V?
Include product code or model SAVSC1258TGP, intended use, desired quantity, items you already have and any size or weight limits. That helps us answer faster and more accurately.
Can RC-MODEL match accessories and parts for SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V?
Yes. RC-MODEL can help match accessories, adhesives, hardware, batteries, replacement parts and supporting equipment so the product fits your setup properly.
How should I prepare SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V before first use?
Check the manual, dimensions, connectors and required accessories for SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V. Dry fit or test electrically before permanent installation, then contact RC-MODEL if any compatibility detail is unclear.
Which spare parts should I consider with SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V?
For SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V, useful spares depend on the product code SAVSC1258TGP and the way it will be used. We normally check wear items, adapters, hardware, consumables and parts that are difficult to improvise during a field day.
What upgrades make sense for SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V?
The right upgrade for SC1258TGP - Standard Size Coreless Digital Servo w/ Soft Start, 0.08sec / 166.6oz @ 6V depends on the current setup and the target use of SAVSC1258TGP. RC-MODEL can compare size, voltage, current, material and installation limits before recommending a stronger or more advanced option.
| Technical Specifications |
| Product Type |
Servos |
| Weight |
64g |
| Motor Type |
Coreless |
