Why choose PH173-WACO 91" 60cc ARF V2 through RC-MODEL?
PH173-WACO 91" 60cc ARF V2 is an RC product from Phoenix Model. This page focuses on what an end customer needs: fit, use cases, specifications and imagery, without prices or outbound supplier detours.
Fit and use
PH173-WACO 91" 60cc ARF V2 fits customers looking for Phoenix Model items in Giant Scale Aircraft, with RC-MODEL support for choosing the right configuration.
- Relevant category: Giant Scale Aircraft
- Product identification for inquiry: model PH173-WACO / SKU PH173-WACO
Key details
- Spinner size: 95mm scale type (included)
- Packing: BOX DIMENSION - 1469mm X 660mm X 393mm (L x W x H)
- Feature: - Superb flying characteristics, plus an accurate scale outline - Scale Pilot figure (included) - Heavy Duty Aluminum Landing gear (inclu...
- Servo: 6 standard with hi-torque servo: 2 aileron; 2 elevator; 1 rudder; 1 throttle (not included)
- Length: 1873mm (73.7 in)
- Wingspan: 2300mm (90.5 in)
Before ordering
- Confirm dimensions, power system, radio compatibility or material size before purchase.
- Ask us to match required accessories, adhesives, hardware, batteries or replacement parts.
- RC-MODEL helps with fit checks, availability, compatible accessories and a formal quote in Israel.

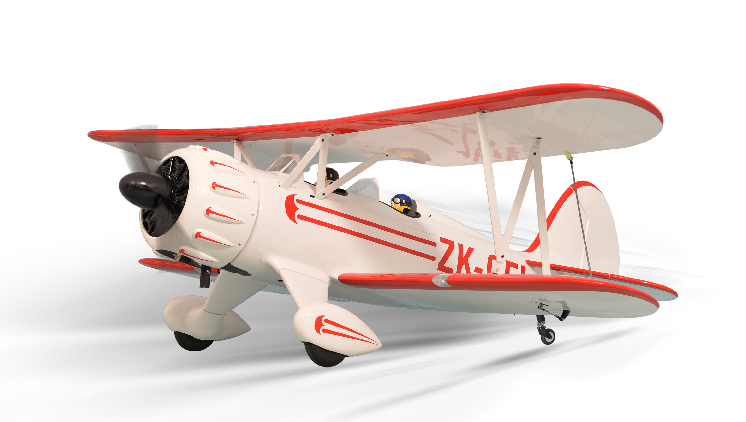

PH173-WACO 91" 60cc ARF V2
PH173-WACO 91" 60cc ARF V2 is presented as an information-rich giant scale RC aircraft from Phoenix Model for RC-MODEL customers who want clear product data, official imagery, and practical comparison details without storefront pricing.
Key Specifications
- Wingspan: 2300mm (90.5 in)
- Length: 1873mm (73.7 in)
- Flying weight: 12.5 kg-13.5 kg
- Wing area: 162.5 dm2
- Wing loading: 76.9g/dm2
- Wing type: Naca airfoils
- Spinner size: 95mm scale type (included)
- Radio: 8 channel minimum (not included)
- Servo: 6 standard with hi-torque servo: 2 aileron; 2 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 6.0V 2400/2600mAh NiMH (2) (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine; 24x12 (not included)
Recommended Use
This catalog page is written for pilots, builders, racers, and RC hobby users comparing giant scale aircraft products. It highlights the manufacturer, model identity, application, and measurable details that matter when choosing compatible RC equipment.
Product-specific guides
Buying and setup guides for PH173-WACO 91" 60cc ARF V2
Use these notes to choose compatible accessories, plan assembly, order sensible spares and ask the right questions before buying PH173-WACO 91" 60cc ARF V2.
Compatibility guide
Compatibility and accessories
Before ordering PH173-WACO 91" 60cc ARF V2, match it to your setup, the Phoenix Model brand context and the exact product code PH173-WACO. These are the first points we would confirm with you.
- Specification to verify: Spinner size - 95mm scale type (included)
- Specification to verify: Packing - BOX DIMENSION - 1469mm X 660mm X 393mm (L x W x H)
- Battery cell count, capacity and physical tray size
- Motor, ESC, propeller and servo compatibility
- CG range, receiver channels and required pilot level
Find matching products
Assembly guide
Correct setup and adjustment
For PH173-WACO 91" 60cc ARF V2, installation quality matters as much as the product itself. Use the Phoenix Model / PH173-WACO identification to plan tools, setup order and final checks.
- Dry fit wing, tail, landing gear and canopy before glue
- Check hinge security, servo direction, throws and failsafe
- Balance CG with the real flight battery installed
Find matching products
Spare parts guide
Spare parts to prepare
For PH173-WACO 91" 60cc ARF V2, useful spares are the parts most likely to stop a flying, sailing or workshop day. Keep the exact code Phoenix Model ready so RC-MODEL can match compatible items from PH173-WACO where available.
- Propellers, spinner, wheel or landing gear parts
- Hinges, control horns, servo arms and pushrods
- Battery straps, screws, adhesives and field tools
Find matching products
Upgrade guide
Useful upgrade options
Upgrade PH173-WACO 91" 60cc ARF V2 only where it improves reliability, control, cooling, power margin or serviceability. We compare the current Phoenix Model setup with the target use of PH173-WACO before recommending parts.
- Metal gear servos where load or landing shock is high
- ESC/BEC margin, telemetry and clean cooling airflow
- Propeller and battery choices matched with current measurement
Find matching products
Questions and answers
Questions before buying
Before choosing PH173-WACO 91" 60cc ARF V2, send RC-MODEL the model code Phoenix Model, your existing equipment and the way you plan to use it. That lets us answer with a practical fit recommendation instead of a generic answer.
- Expected flight time and recommended battery range
- CG location, control throws and glue type
- Runway length, wind tolerance and experience level
Ask RC-MODEL
Relevant RC Academy guides
Learn before you buy
These guides explain the setup, safety checks and accessory choices that usually matter for this product type.
Building
A general ARF assembly workflow for many aircraft: dry fit, hinges, servo installation, power setup, CG, control checks and first-flight preparation.
Servos
How to select servos for trainers, sport aircraft, large models, cars and boats without under-sizing a control surface.
Setup
One of the most important setup guides: find the CG, install the flight battery, balance the aircraft and avoid nose-heavy or tail-heavy surprises.
Maintenance
A repeatable inspection routine for control direction, radio range, failsafe, battery, fasteners, propeller, CG and field readiness.
Flying
Ground checks, takeoff planning, trim passes, battery timing and first landing strategy for a new or repaired RC aircraft.
Product video
Embedded video for convenient viewing directly on the product page.
Product questions
Is PH173-WACO 91" 60cc ARF V2 suitable for my RC setup?
PH173-WACO 91" 60cc ARF V2 fits customers looking for a Phoenix Model product in Giant Scale Aircraft. Before ordering, send us your model type, dimensions, radio or power setup so we can confirm the correct fit.
What should I include when asking about PH173-WACO 91" 60cc ARF V2?
Include product code or model PH173-WACO, intended use, desired quantity, items you already have and any size or weight limits. That helps us answer faster and more accurately.
Can RC-MODEL match accessories and parts for PH173-WACO 91" 60cc ARF V2?
Yes. RC-MODEL can help match accessories, adhesives, hardware, batteries, replacement parts and supporting equipment so the product fits your setup properly.
Which battery, CG and setup checks are important for PH173-WACO 91" 60cc ARF V2?
For PH173-WACO 91" 60cc ARF V2, verify the recommended battery range, physical tray size, CG, control direction, control throws and failsafe before the first flight. Use the exact model code PH173-WACO when asking for a fit check.
Which spare parts should I order with PH173-WACO 91" 60cc ARF V2?
For PH173-WACO 91" 60cc ARF V2, consider propellers, landing gear parts, hinges, control horns, servo arms, screws, battery straps and suitable adhesives. Exact spares should be matched to model PH173-WACO.
Which upgrades are useful for PH173-WACO 91" 60cc ARF V2?
Useful upgrades for PH173-WACO 91" 60cc ARF V2 may include stronger servos, better ESC/BEC margin, telemetry, a tested propeller choice or batteries matched to the real current draw of PH173-WACO.
| Technical Specifications |
| Product Type |
ARF aircraft model |
| Length |
1873mm (73.7 in) |
| Motor |
brushless outrunner 6500-8400 W, 160 KV (not included); Rimfire 65cc (not included) |
| Wingspan |
2300mm (90.5 in) |
| Flying weight |
12.5 kg-13.5 kg |
| Wing area |
162.5 dm2 |
| Spinner size |
95mm scale type (included) |
| Feature |
- Superb flying characteristics, plus an accurate scale outline - Scale Pilot figure (included) - Heavy Duty Aluminum Landing gear (included) - Two-pieces Wing - Making assembly and transport super convenient - Designed for compatibility with both GP and EP f... |
| Colour chart |
- White (# 21010) - Ferrari Red (# 21023) |
| Packing |
BOX DIMENSION - 1469mm X 660mm X 393mm (L x W x H) |
| Wing loading |
76.9g/dm2 |
| Wing type |
Naca airfoils |
| Servo |
6 standard with hi-torque servo: 2 aileron; 2 elevator; 1 rudder; 1 throttle (not included) |
| Servo mount |
21mm x 42 mm |
| Propeller |
suit with your engine; 24x12 (not included) |
| Engine |
50- 61 CC gas engine (two stroke) (not included) |
| Experience level |
Intermediate |
| Plane type |
Bipe plane |
| Lipo cell |
12S LiPo (not included) |
| Esc |
160 Amp (not included) |
| Radio |
8 channel minimum (not included) |
| Recommended receiver battery |
6.0V 2400/2600mAh NiMH (2) (not included) |
